Product Information

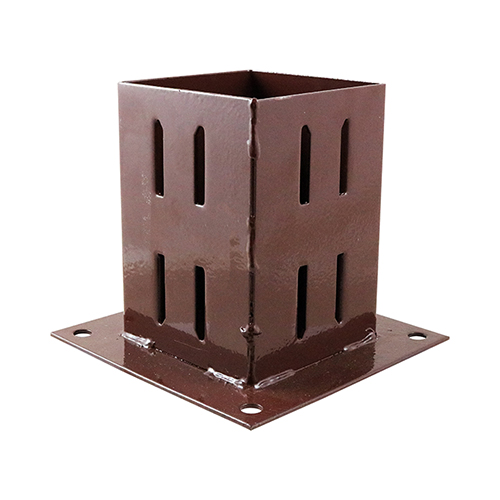

Bolt down fence post shoes are a quick and easy way to erect fencing and garden posts as they require no digging or concreting into place, saving time and money. They are designed to be fixed down onto an existing concrete base or wall and are perfect for patio fencing, decking, pergolas or car ports. The quick fit version features inverted fins inside the post holder section that will hold the post in a vice like grip.
  • Prevents against post rot and decay as it will hold the base of the post above ground level
  • Red oxide powder coat to blend in with fencing whilst also providing a medium rust protection
  • Can be painted over
Documents
Technical Specifications
Product Specification
Base Plate Size L x W mm 180 x 180
Post Holder Length mm 150
Colour Reference (RAL) 8015
Type Quick Fit
To Suit Post Size inch 4 x 4
To Suit Post Size mm 100 x 100
Pack Dimensions L x W x H mm 180 x 180 x 150
Pack Weight kg 1.69
Carton Qty Packs 10
Pallet Qty Packs 180
Offers Sale
Product Code BDQ100
SKU Barcode 5055893364826
Fixing Hole Dia mm 11
No of Bolt Holes 4
Product Specifications
Finish Oxide Red Powder Coated
Material Carbon Steel
Attribute Group 1
Brand TIMCO

Bolt Down Shoe - Quick Fit - Oxide Red

100mm

  • Product Code: BDQ100
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5055893364826
