Product Information

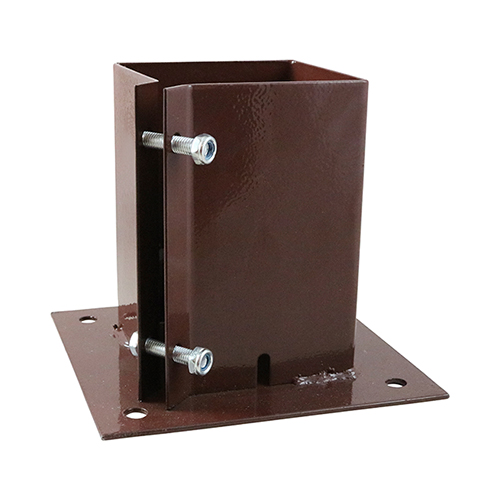

Bolt down fence post shoes are a quick and easy way to erect fencing and garden posts as they require no digging or concreting into place, saving time and money. Designed to be fixed down onto an existing concrete base or wall and are perfect for patio fencing, decking, pergolas or car ports. The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. The bolt system also allows for removal of the post at a later stage if required.
  • Prevents against post rot and decay as it will hold the base of the post above ground level
  • Red oxide powder coat to blend in with fencing whilst also providing a medium rust protection
  • Can be painted over
Documents
Technical Specifications
Product Specification
Base Plate Size L x W mm 150 x 150
Carriage Bolt Size mm M8 x 35
Nut Size mm M8
Post Holder Length mm 150
Colour Reference (RAL) 8015
Type Bolt Secure
No of Nuts 2
No of Carriage Bolts 2
To Suit Post Size inch 3 x 3
To Suit Post Size mm 75 x 75
Pack Dimensions L x W x H mm 150 x 150 x 150
Pack Weight kg 1.23
Carton Qty Packs 10
Pallet Qty Packs 480
Offers Sale
Product Code BDB75
SKU Barcode 5055893364772
Fixing Hole Dia mm 11
No of Bolt Holes 4
Product Specifications
Finish Oxide Red Powder Coated
Material Carbon Steel
Nut Type Nylon - Type T
Included Items M8 x 35mm Carriage Bolts (Qty 2), M8 Nylon - Type T Nuts (Qty 2)
Attribute Group 1
Brand TIMCO

Bolt Down Shoe - Bolt Secure - Oxide Red

75mm

  • Product Code: BDB75
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5055893364772
