Product Information

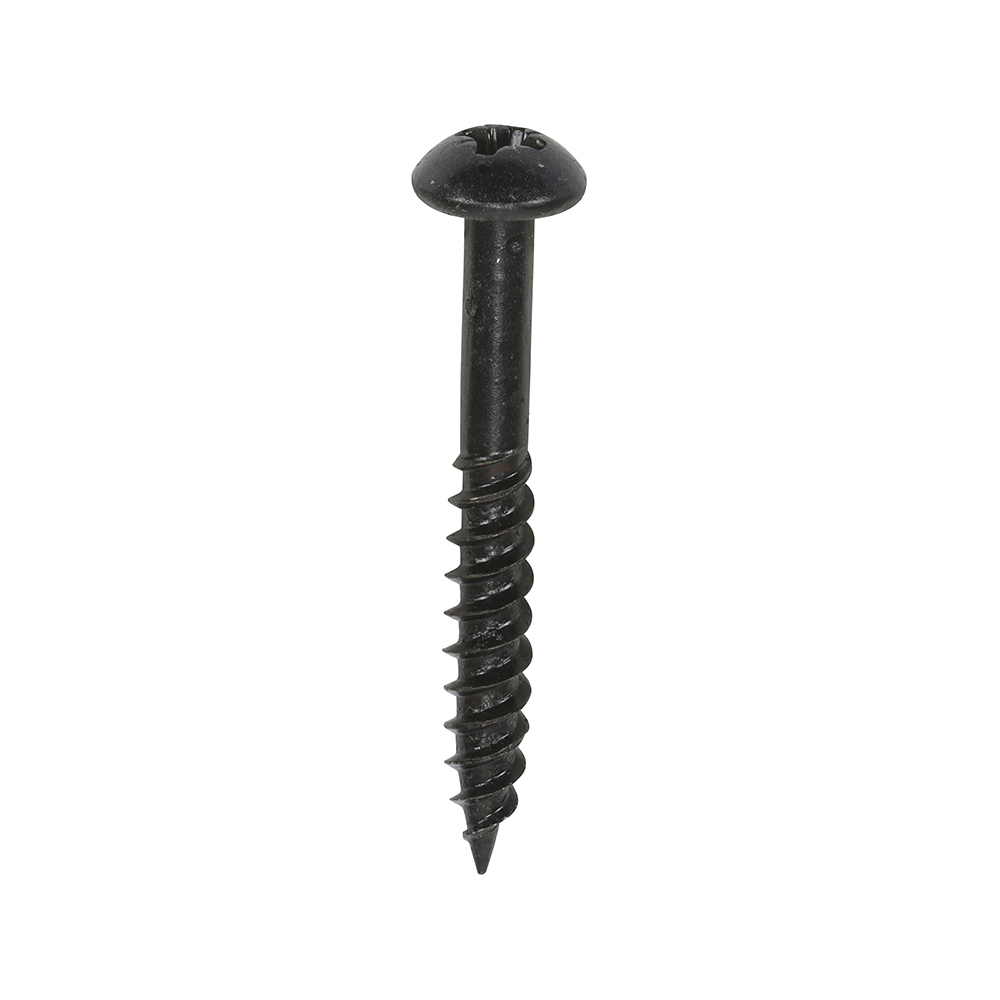

A twin-threaded woodscrew with a black organic finish designed to be used with a black ironmongery. NOTE: Partially threaded.
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Colour | Black |
| Finish | Exterior (Black Organic) |
| Head Type | Round |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Partially Threaded |
| Thread Type | 60° Twin Threads |
| Driver Bit Size | PZ2 |
| Substrates | Softwood |
Product Specification
| Length inch | 1 1/2 |
| Length mm | 40 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 40 |
| Thread Length mm | 26.4 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 138 x 92 x 64 |
| Pack Weight kg | 0.8 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 10112BJC |
| SKU Barcode | 5055017506170 |
| Size imp | 10 x 1 1/2 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 3.25 |
| Head Dia mm | 9.18 |
Attribute Group 1
| Brand | TIMCO |
Blackjax Woodscrews - PZ - Round - Black Organic
10 x 1 1/2
- Product Code: 10112BJC
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5055017506170
