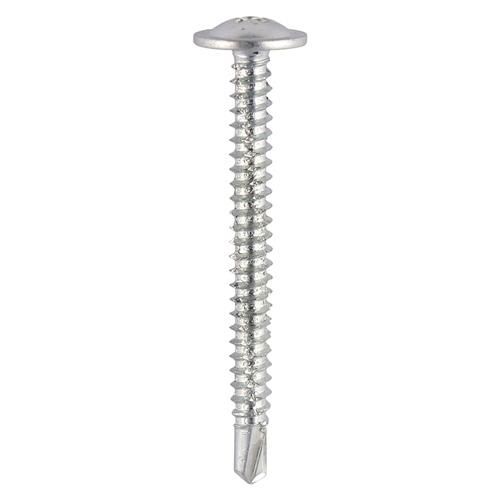

Product Image 1
Product Image 2
Product Information
Specifically designed for joining of PVCu bay window sections, but frequently used for other window and door fabrication purposes.
  • Fire Classification - A1
Documents
Brochure Page
Declaration of Conformity CE
Technical Specifications
Product Specification
Length mm 80
Diameter mm 4.8
Size mm 4.8 x 80
Finish Zinc
Head Type Wafer Flange
Material Carbon Steel
Point Type Self-Drilling
Recess Type Phillips
Thread Coverage Fully Threaded
Thread Type Self-Tapping V Flute
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Driver Bit Size PH2
Max Drilling Thickness mm 4
Substrates Steel
Pack Dimensions L x W x H mm 232 x 92 x 92
Pack Weight kg 1.74
Carton Qty Packs 8
Pallet Qty Packs 216
Approval All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines.
CE Standard Web BS EN 14566:2008
Product Code 293Z
SKU Barcode 5055017529223
Thread Dia mm 4.8
Attribute Group 1
Brand TIMCO

Baypole Screws - Wafer Flange - PH - Self-Drilling Point - Zinc

4.8 x 80

  • Product Code: 293Z
  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5055017529223
