Product Information

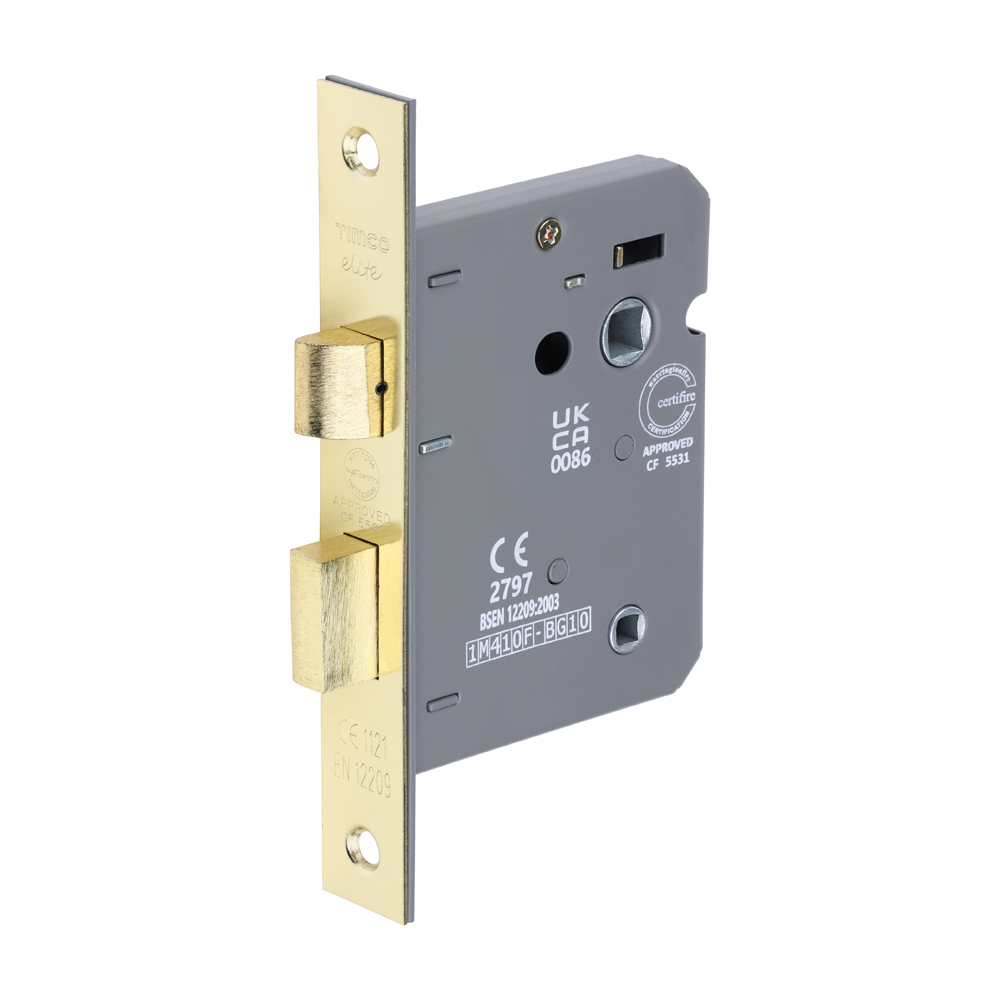

A medium duty bathroom lock that is ideal for use in domestic and commercial applications. The lock features a medium duty spring and is recommended to be used with sprung door handles. The deadbolt is operated by a turn with a 5mm spindle.
Documents
Technical Specifications
Product Specification
| Backset mm | 57 |
| Bolt Throw mm | 13 |
| Centres mm | 57 |
| Faceplate Size H x W mm | 152 x 22 |
| Keep Size H x W mm | 125 x 24 |
| Lock Case Depth mm | 78 |
| Lock Case Height mm | 102 |
| Lock Case Size H x D mm | 102 x 78 |
| Lock Case Width mm | 14 |
| Lock Follower Backset mm | 57 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 78 / 57 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 164 x 98 x 34 |
| Pack Weight kg | 0.4 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 850 |
| BS EN Classification | 1M410F-BG10 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675248 |
| SKU Barcode | 5056110837390 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Electro Brass |
Attribute Group 1
| Brand | TIMCO |
Bathroom Lock - Electro Brass
78mm
- Product Code: 675248
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110837390
