Product Information
Ideal for thin doors or folding joints on furniture.
- Fits to the surface when the material is too thin for butt hinges
- Manufactured from steel in a zinc finish
- Fixings included
Documents
Technical Specifications
Product Specification
| Length inch | 1.25 |
| Length mm | 32 |
| Open Width mm | 76 |
| Screw Size mm | 3.5 x 25 |
| Size L x W mm | 32 x 76 |
| Thickness mm | 1.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 196 x 87 x 12 |
| Pack Weight kg | 0.06 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 404 |
| Product Code | 434846P |
| SKU Barcode | 5056110884936 |
| Size imp | 1.25 |
| Screw Size imp | 6 x 1 |
| Knuckle Dia mm | 6.6 |
| Hole Dia mm | 4.7 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

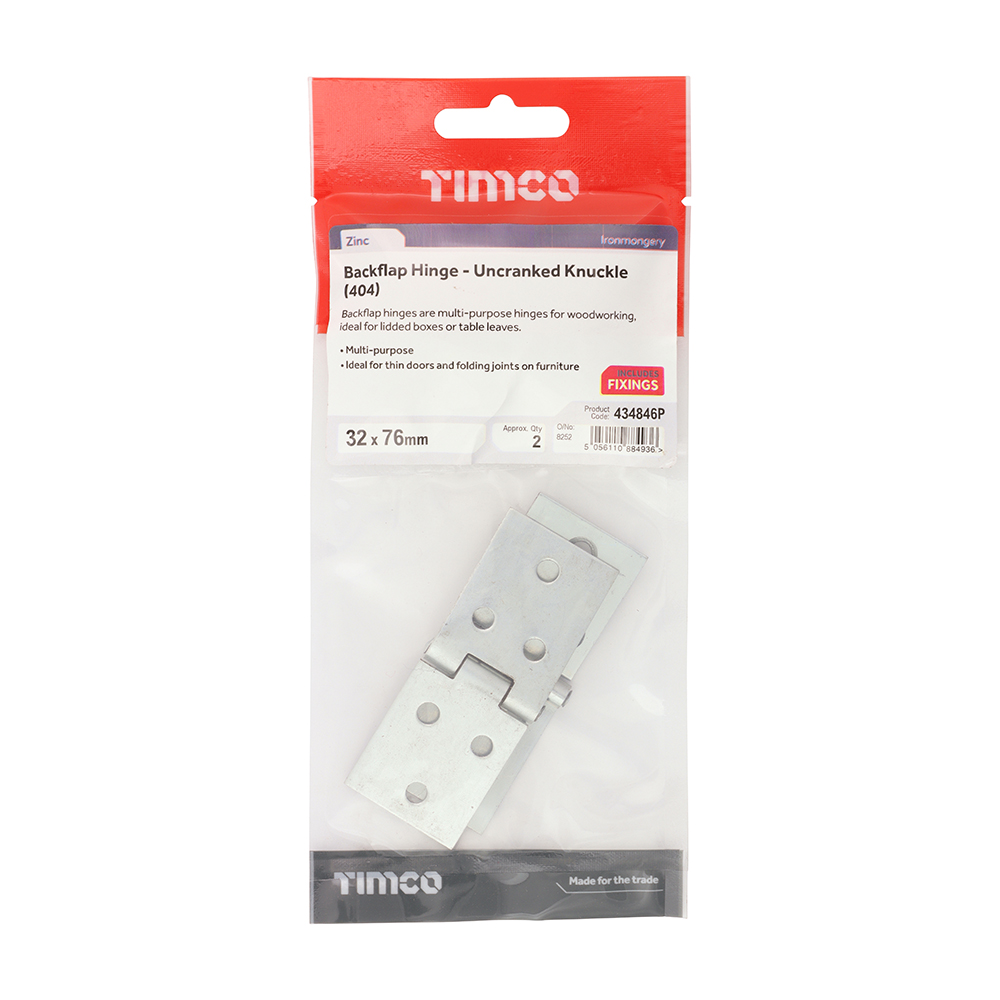

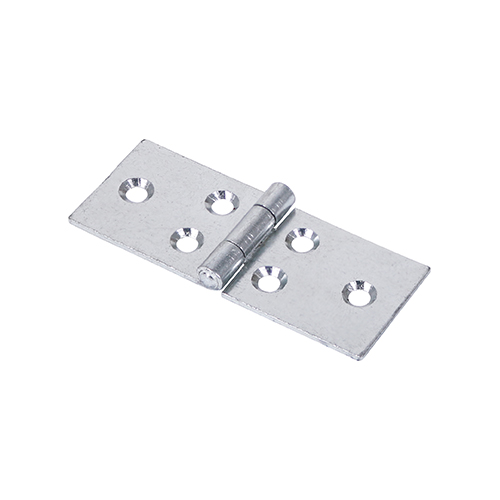

Backflap Hinge - Uncranked Knuckle (404) - Zinc
32 x 76
- Product Code: 434846P
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110884936
