Product Information
Ideal for thin doors or folding joints on furniture.
- Fits to the surface when the material is too thin for butt hinges
- Manufactured from steel in a zinc finish
- Fixings included
Documents
Technical Specifications
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| Open Width mm | 106 |
| Screw Size mm | 4.0 x 30 |
| Size L x W mm | 50 x 106 |
| Thickness mm | 2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 237 x 116 x 20 |
| Pack Weight kg | 0.218 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 404 |
| Product Code | 434843P |
| SKU Barcode | 5056110884950 |
| Size imp | 2 |
| Screw Size imp | 8 x 1 1/4 |
| Knuckle Dia mm | 8.8 |
| Hole Dia mm | 5.3 |
| Rec Screw Dia mm | 4.5 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

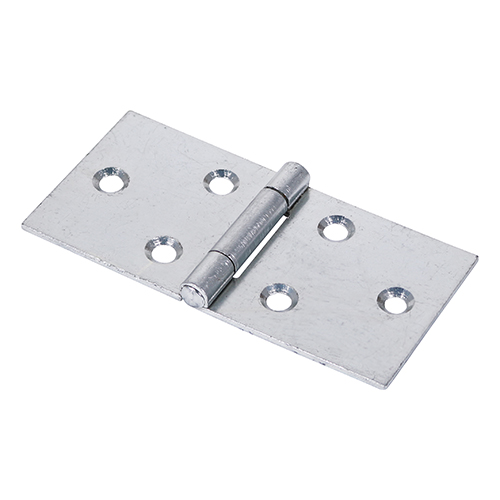

Backflap Hinge - Uncranked Knuckle (404) - Zinc
50 x 106
- Product Code: 434843P

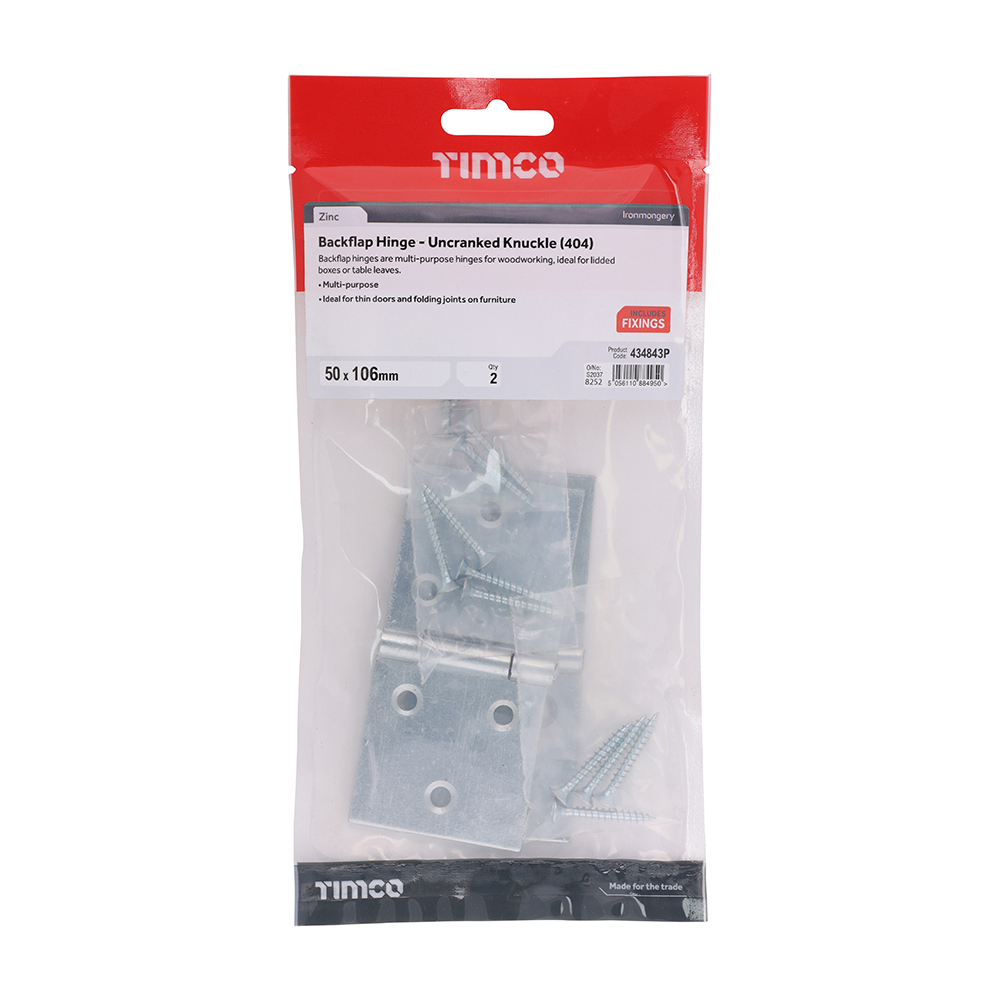

- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110884950
