Product Information
Ideal for thin doors or folding joints on furniture.
- Fits to the surface when the material is too thin for butt hinges
- Manufactured from steel
Documents
Technical Specifications
Product Specification
| Length inch | 2 1/2 |
| Length mm | 65 |
| Open Width mm | 147 |
| Size L x W mm | 65 x 147 |
| Thickness mm | 2.3 |
| Corner Type | Square |
| Finish | Self Colour |
| Knuckle Type | Plain |
| Material | Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.4 |
| Carton Qty Packs | 60 |
| Pallet Qty Packs | 1,800 Pairs |
| Pattern | 404 |
| Product Code | 434164 |
| SKU Barcode | 5056110809144 |
| Size imp | 2.5 |
| Knuckle Dia mm | 8.8 |
| Hole Dia mm | 5.3 |
| Rec Screw Dia mm | 4.5 |
Attribute Group 1
| Brand | TIMCO |

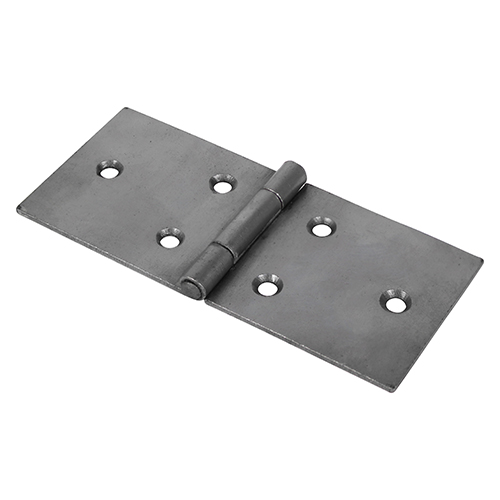

Backflap Hinge - Uncranked Knuckle (404) - Self Colour
65 x 147
- Product Code: 434164
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110809144
