Product Information
Automatically latches when the gate is shut and are pad-lockable for added security. Ideal for use in light domestic applications. Fixings included.
Documents
Technical Specifications
Product Specification
| Backplate Size L x W mm | 50 x 50 |
| Bar Length mm | 110 |
| Catch Projection mm | 50 |
| Size inch | 2 |
| Size mm | 50 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 4.0 x 30 |
| Max Padlock Shackle Diameter mm | 7 |
| No of Pan Screws | 4 |
| No of CSK Screws | 2 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 20 x 160 x 195 |
| Pack Weight kg | 0.17 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | AGLMZP |
| SKU Barcode | 5055893366738 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 4), 4.0 x 30mm Countersunk Screws (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

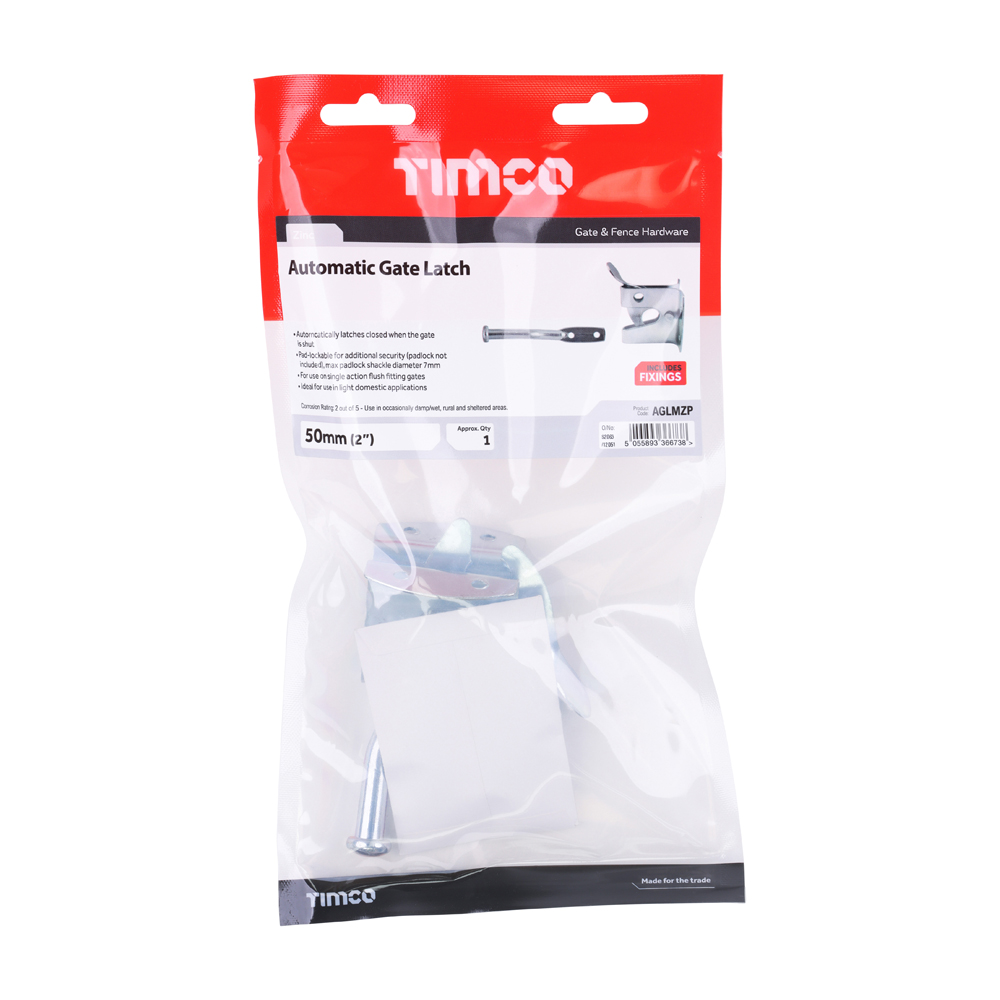

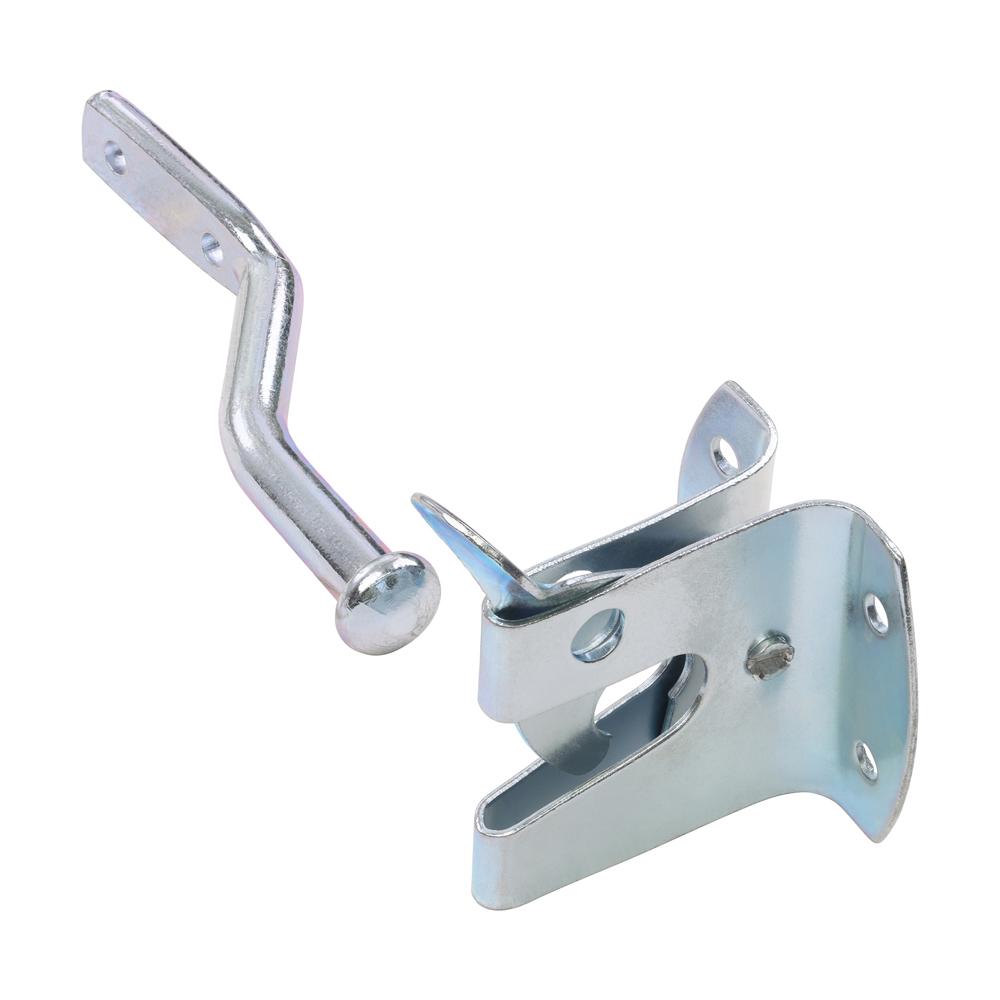

Automatic Gate Latch - Zinc
2"
- Product Code: AGLMZP
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893366738
