Product Information

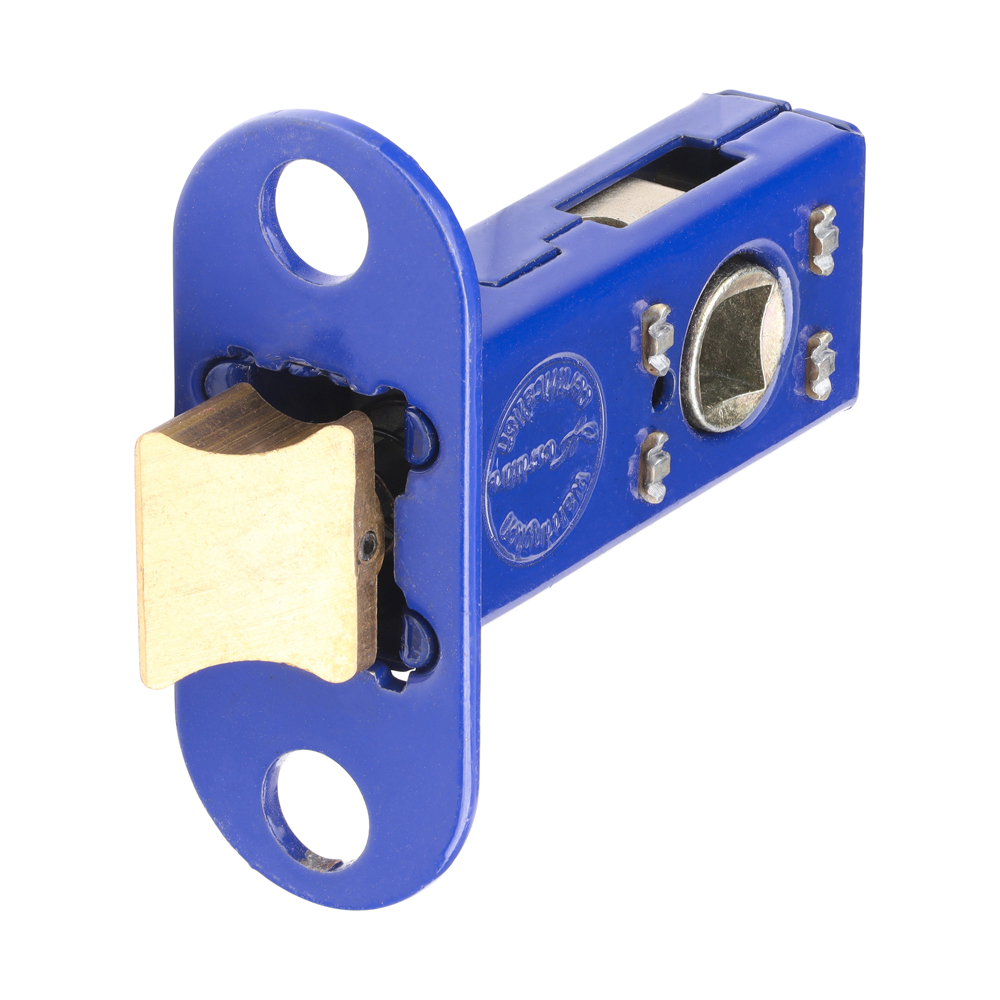

A heavy duty architectural pattern tubular latch for use in high use domestic and commercial applications. The latch features a heavy duty spring mechanism and be used with sprung and unsprung door handles.
- Suitable for 30 & 60 minute fire doors
- Easily reversible by turning the live latch/bolt, suitable for both left and right hand operation

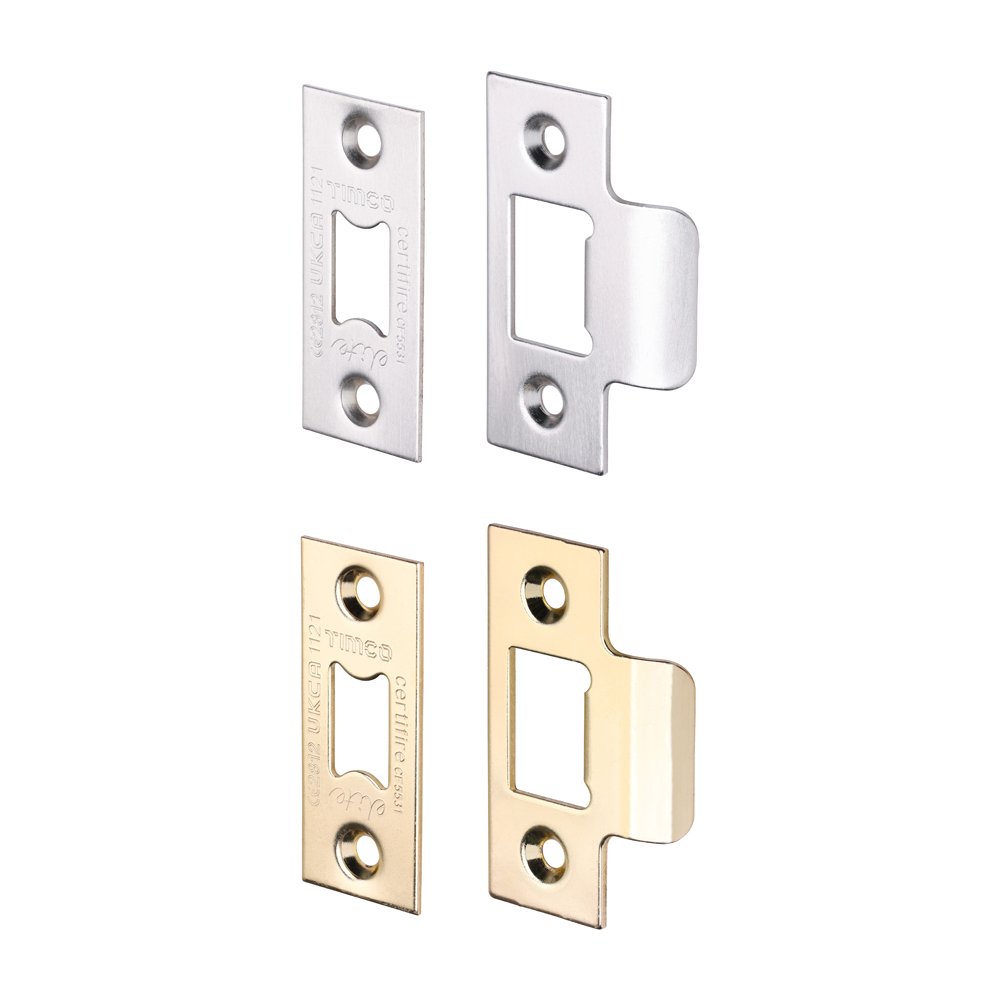

- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Bolt through
- Complete with dust box and fixing screws
Documents
Technical Specifications
Product Specification
| Backset mm | 45 |
| Faceplate Size H x W mm | 60 x 25 |
| Keep Size H x W mm | 65 x 25 |
| Lock Case Depth mm | 64 |
| Lock Case Height mm | 22.5 |
| Lock Case Size H x D mm | 22.5 x 64 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 45 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 64 / 45 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 127 x 79 x 37 |
| Pack Weight kg | 0.176 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 1600 |
| BS EN Classification | 1M410F-B010 |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675264 |
| SKU Barcode | 5056110837543 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Electro Brass, Satin Nickel |
Attribute Group 1
| Brand | TIMCO |

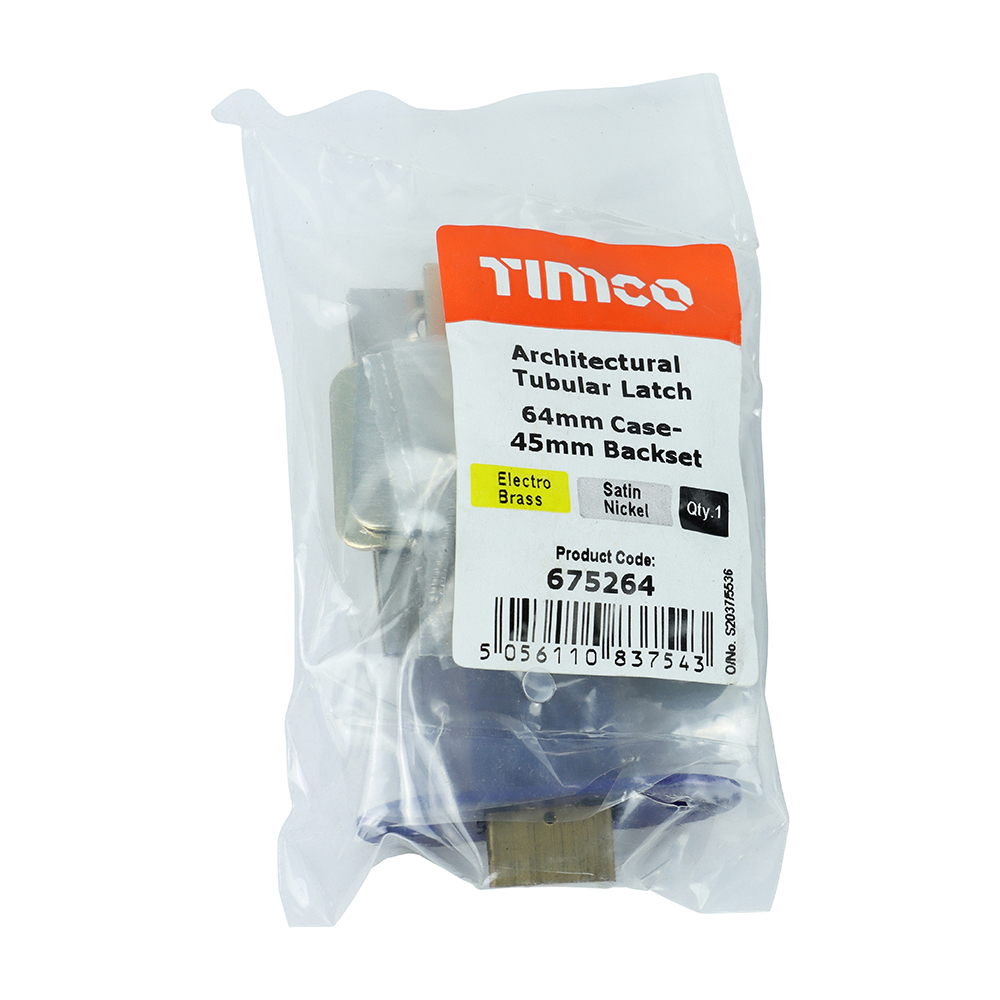

Architectural Tubular Latch - Electro Brass & Satin Nickel
64 case / 45 backset
- Product Code: 675264
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110837543
