Product Information

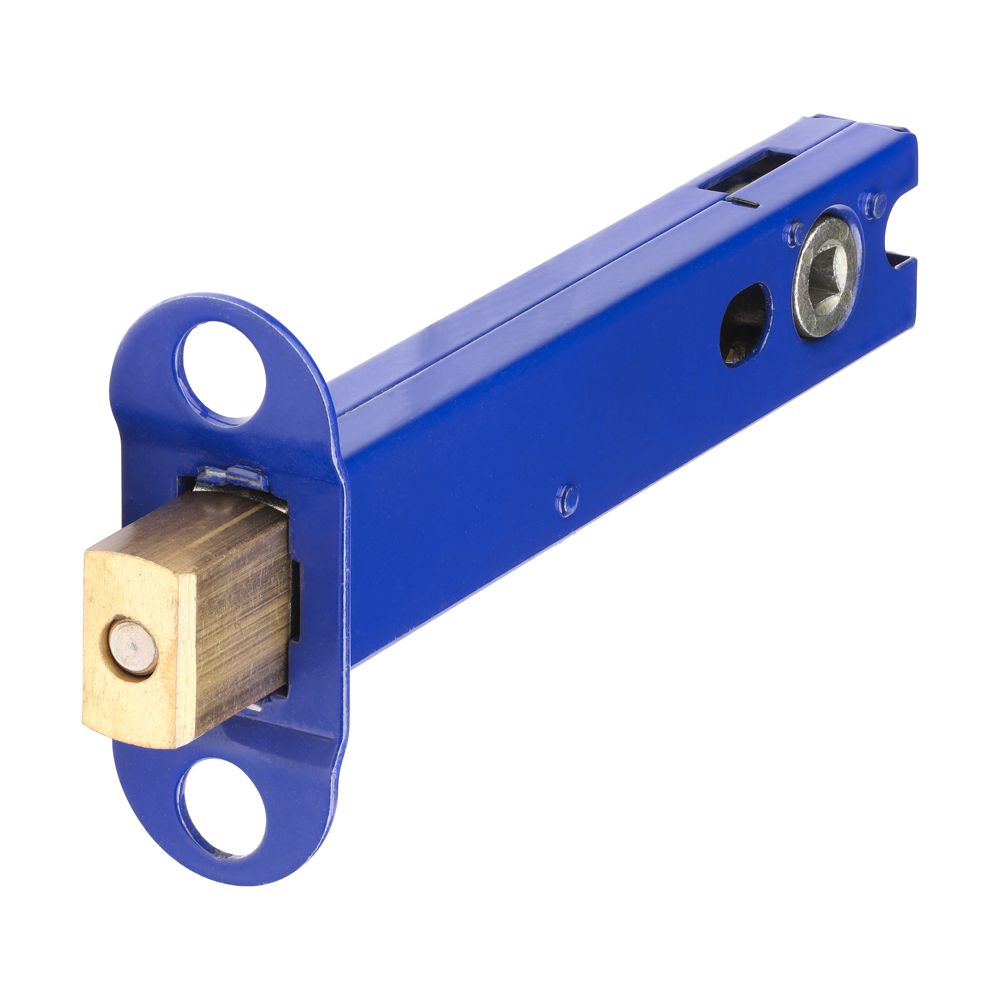

A heavy duty architectural pattern tubular deadbolt for use in high use domestic and commercial applications. The deadbolt is to be used in conjunction with a bathroom turn that has a 5mm spindle.
- Fixings for electro brass & satin nickel furniture
- Use with sprung or unsprung furniture
- Dust box
- Complete with fixing screws
Documents
Technical Specifications
Product Specification
| Backset mm | 108 |
| Bolt Throw mm | 15 |

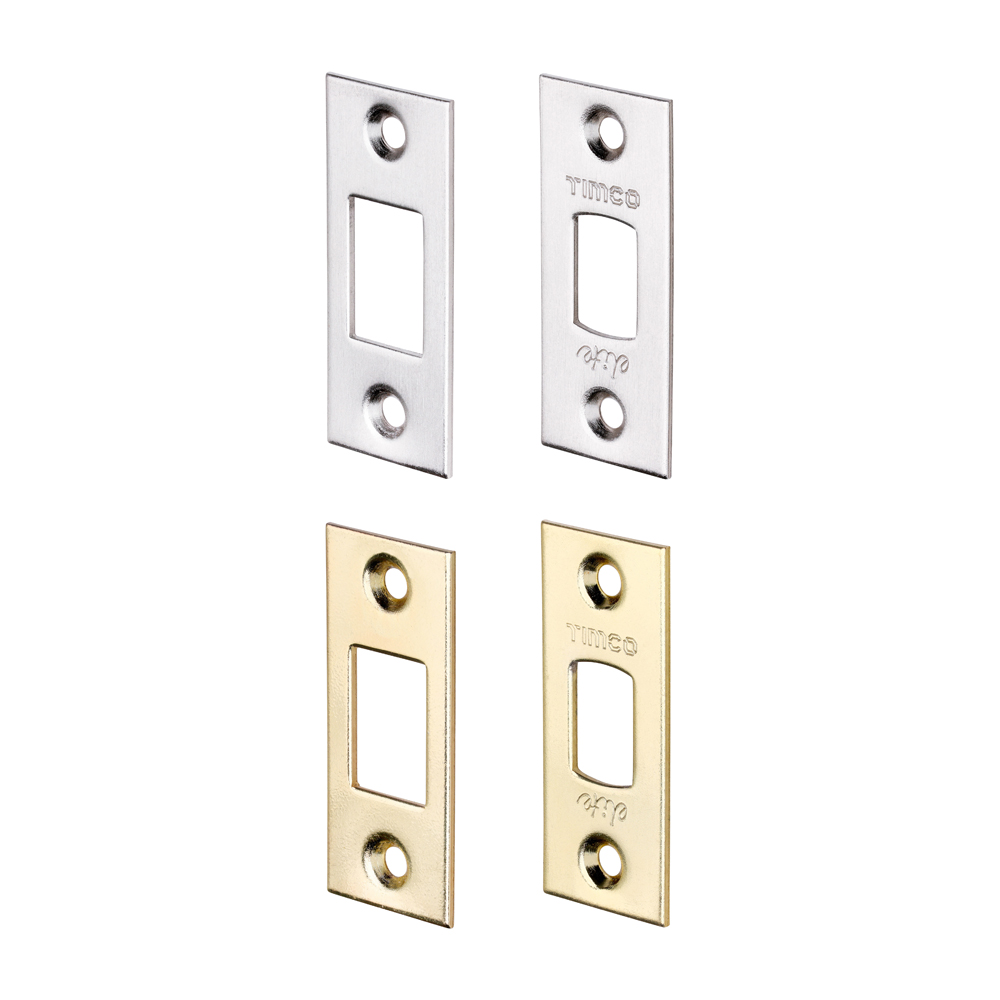

| Faceplate Size H x W mm | 60 x 25 |
| Keep Size H x W mm | 60 x 25 |
| Lock Case Depth mm | 129 |
| Lock Case Height mm | 22.5 |
| Lock Case Size H x D mm | 22.5 x 129 |
| Lock Case Width mm | 15 |
| Lock Follower Backset mm | 108 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 129 / 108 |
| Faceplate Type | Square |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 161 x 96 x 31 |
| Pack Weight kg | 0.222 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 1600 |
| Product Code | 675198 |
| SKU Barcode | 5056110837611 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Electro Brass, Satin Nickel |
Attribute Group 1
| Brand | TIMCO |

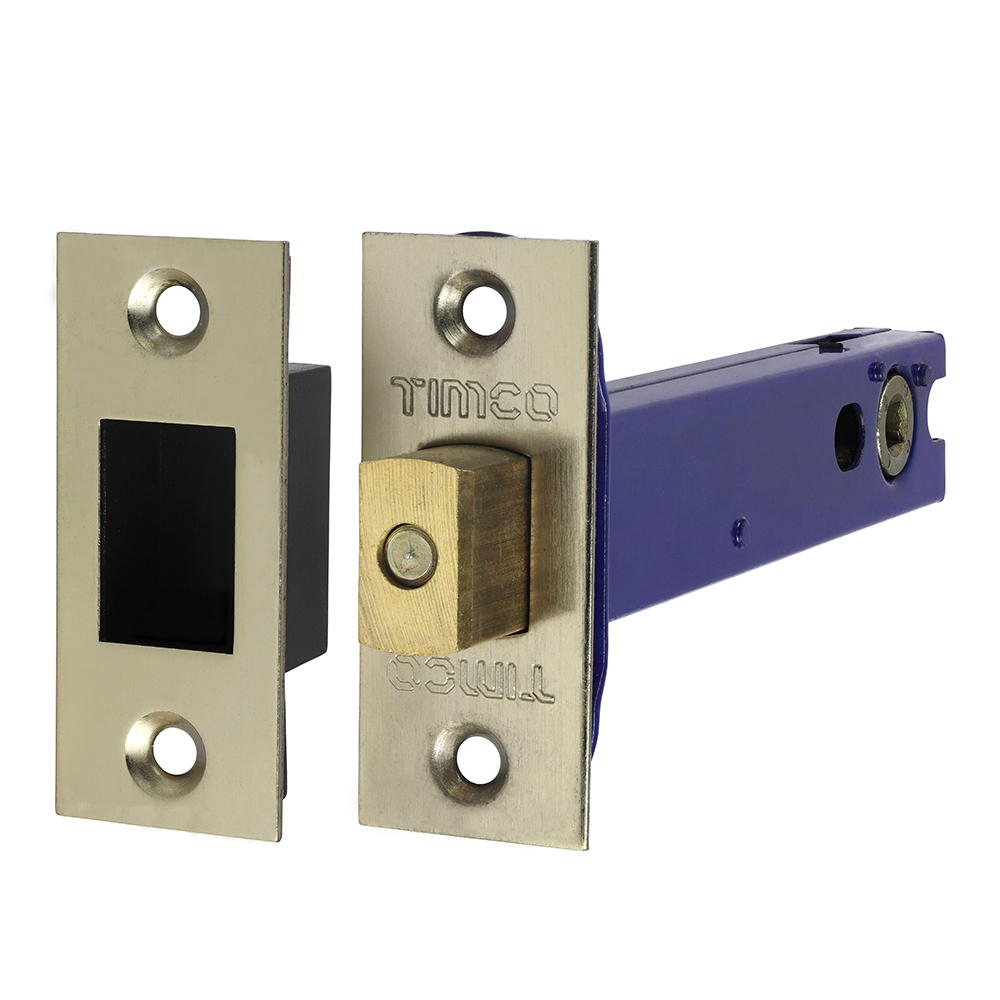

Architectural Tubular Deadbolt - Electro Brass & Satin Nickel
129 case / 108 backset
- Product Code: 675198
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110837611
