Product Information

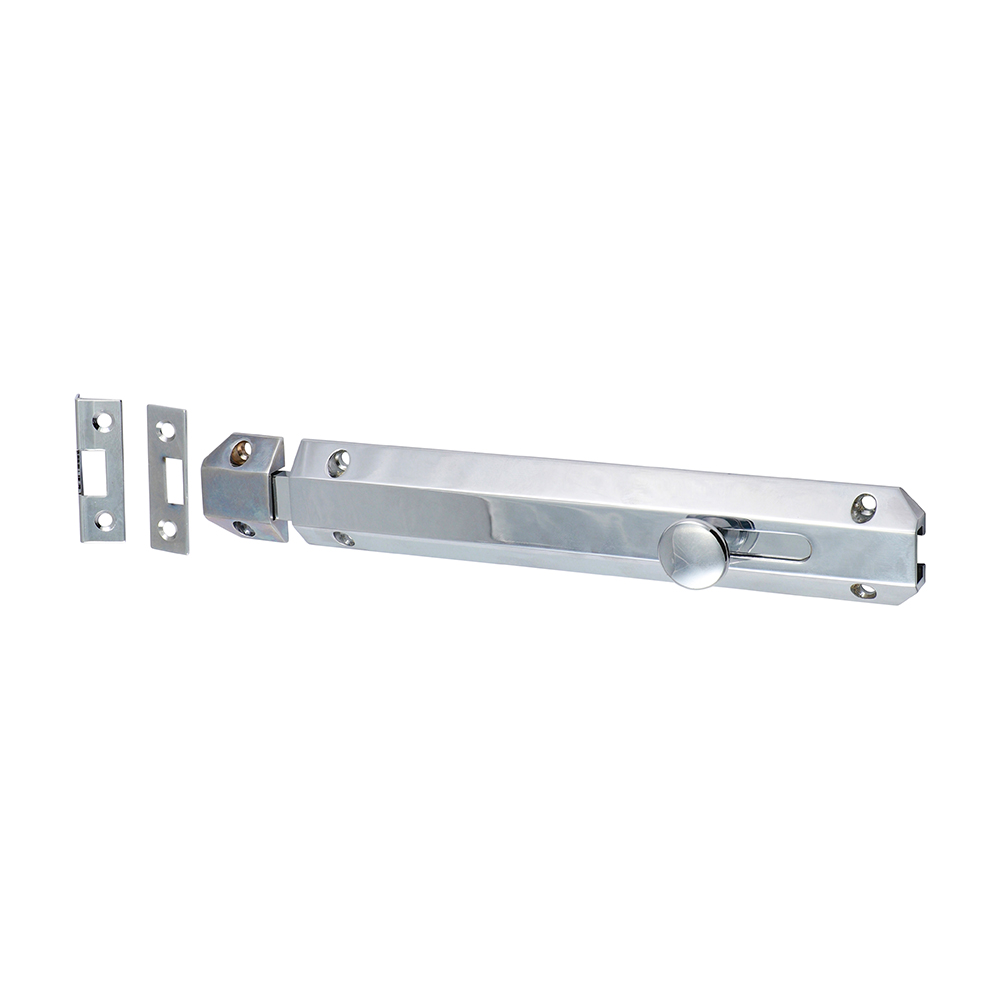

A high quality designer bolt commonly used for securing French doors. The bolt comes supplied with all three keeps required for flush and recessed mounted doors.
- Contemporary pattern
- Heavy duty
- Includes 3 fittings for flush and recessed applications
- Solid construction
Documents
Technical Specifications
Product Specification
| Bolt Throw mm | 25 |
| Length mm | 210 |
| Size L x W mm | 210 x 35 |
| Width mm | 35 |
| Corrosion Rating | 5 - Industrial & coastal areas with an aggressive salt atmosphere |
| CSK Screw Size mm | 3.5 x 25 |
| No of CSK Screws | 6 |
| Pack Dimensions L x W x H mm | 350 x 100 x 40 |
| Pack Weight kg | 0.52 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 200191 |
| SKU Barcode | 5056110830711 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Polished Chrome |
| Material | Brass |
Attribute Group 1
| Brand | TIMCO |
Architectural Flat Section Bolt - Polished Chrome
210 x 35mm
- Product Code: 200191

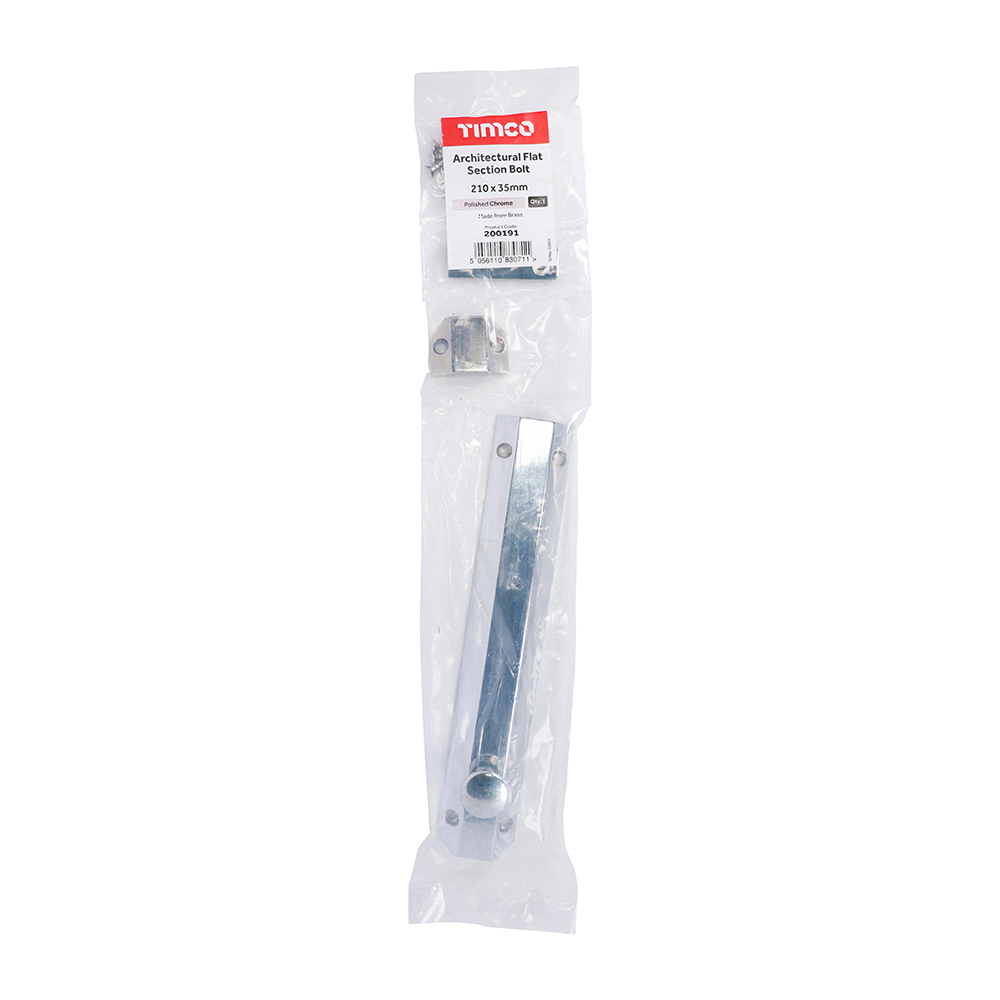

- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110830711
