Product Information

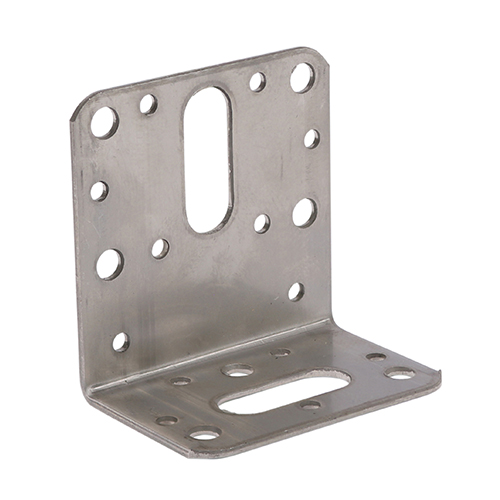

A versatile and general purpose 90° bracket used to strengthen timber joints. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Documents
Technical Specifications
Product Specification
| Height mm | 90 |
| Length mm | 90 |
| Size L x H mm | 90 x 90 |
| Thickness mm | 2 |
| Width mm | 62 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 90 x 62 x 90 |
| Pack Weight kg | 0.16 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 3600 |
| Product Code | 9090ABS |
| SKU Barcode | 5022456321251 |
| No of Bolt Holes M10 | 3 |
| No of Bolt Holes M8 | 4 |
| No of Bolt Slots M10 | 2 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |
Angle Brackets - A2 Stainless Steel
90 x 90
- Product Code: 9090ABS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321251
