Product Information

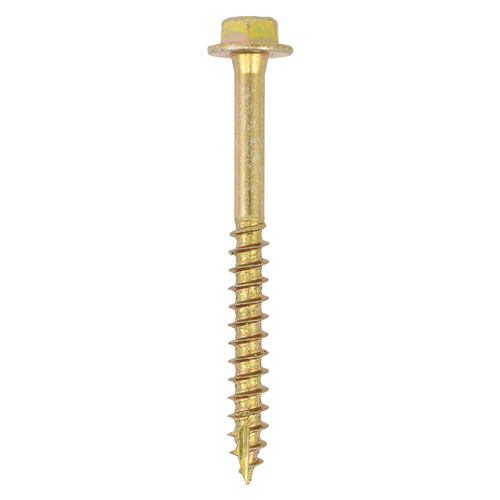

A versatile heavy duty coach screw with a hex flange head and is the modern replacement for traditional DIN 571 coach screws. Benefits from an aggressive slash point tip for easy driving and reduced splitting. Suitable for softwood, hardwood, man-made board or masonry with the use of a nylon plug. Zinc plated and yellow passivated for improved corrosion resistance.
- 3x faster than standard coach screws
- Single slash point for quick installation
- Power tool compatible
Documents
Technical Specifications
Product Specification
| Length mm | 120 |
| Diameter mm | 8.0 |
| Size mm | 8.0 x 120 |
| Socket Size mm | 10 |
| Thread Length mm | 72 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 184 x 90 x 68 |
| Pack Weight kg | 1.48 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 384 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 8120SCSY |
| SKU Barcode | 5055893363584 |
| Thread Dia mm | 8 |
| Inner Thread Dia mm | 5.33 |
| Head Dia mm | 5.33 |
| Fixed Washer Dia mm | 14.6 |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Hex Flange |
| Material | Carbon Steel |
| Point Type | Single Slash |
| Thread Coverage | Partially Threaded |
| Thread Type | Single Coarse |
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Included Items | Socket Driver (Qty 1) |
| Substrates | Hardwood, Softwood, Man-Made Board, Brick (with plug) |
Attribute Group 1
| Brand | TIMCO |
Advanced Coach Screws - Hex Flange - Yellow
8.0 x 120
- Product Code: 8120SCSY
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055893363584
