Product Information
Ideal for use in hanging timber or metal gates and to be used in conjunction with gate hook with matching pin diameter. No fixings required.
Documents
Technical Specifications
Product Specification
| Length mm | 250 |
| Nut Size mm | M22 |
| Nut Socket Size mm | 34 |
| Size mm | M22 x 250 |
| Type | Adjustable |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No of Nuts | 2 |
| Pack Dimensions L x W x H mm | 270 x 39 x 32 |
| Pack Weight kg | 0.83 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 900 |
| Product Code | AGE22250GEA |
| SKU Barcode | 5056110860213 |
| Gate Eye Dia x L mm | M22 x 250 |
| To Suit Pin Dia inch | 7/8 |
| To Suit Pin Dia mm | 22 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M22 Hex Full Nuts (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

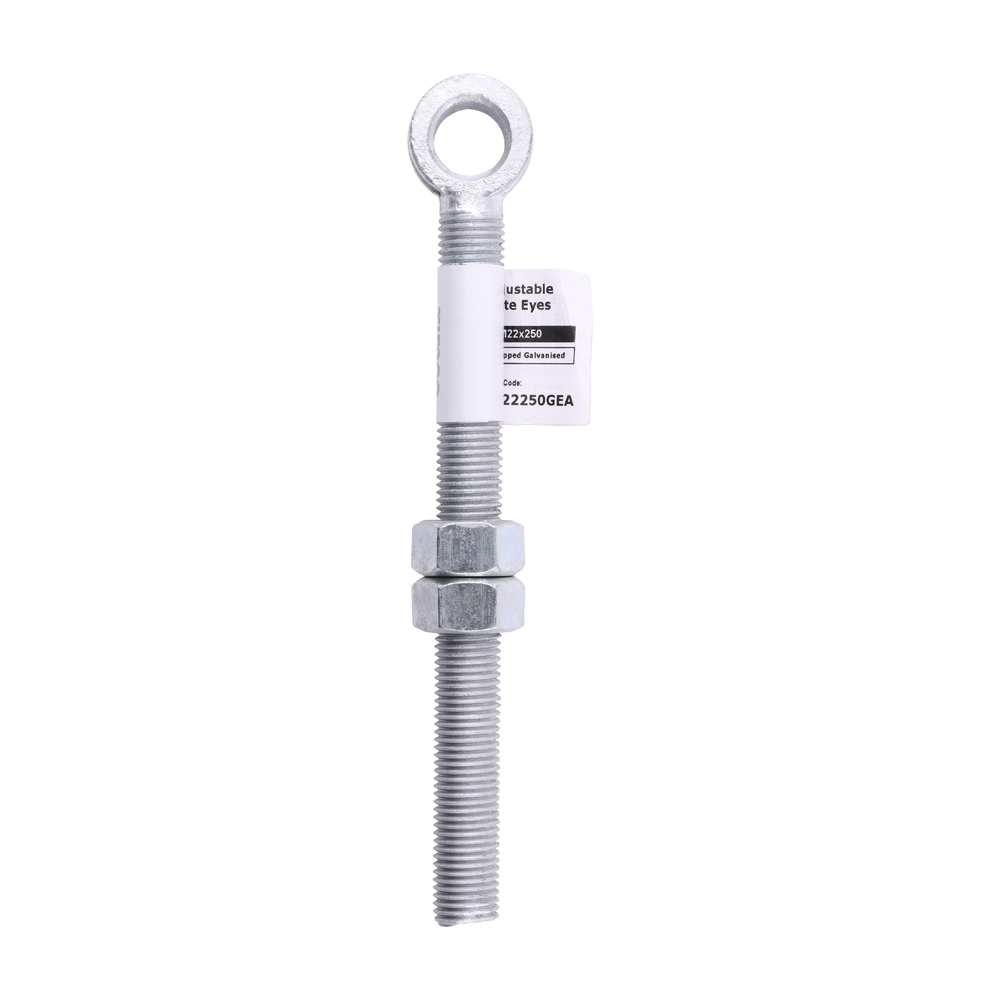

Adjustable Gate Eye with Nuts - Hot Dipped Galvanised
M22 x 250
- Product Code: AGE22250GEA
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5056110860213
