Product Information
A high security mortice lock for use in interior and exterior doors in commercial and domestic environments. The lock has been rigorously tested to BS 3621:2007 which is a common requirement of building and contents insurance policies.
Documents
Technical Specifications
Product Specification
| Backset mm | 57 |
| Bolt Throw mm | 20 |
| Faceplate Size H x W mm | 125 x 25 |
| Keep Size H x W mm | 125 x 29 |
| Lock Case Depth mm | 78 |
| Lock Case Height mm | 80 |
| Lock Case Size H x D mm | 80 x 78 |
| Lock Case Width mm | 18 |
| Lock Follower Backset mm | 57 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 78 / 57 |
| Faceplate Type | Square |
| Key Qty | 2 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Screws Required Per Pair | 6 |
| No of CSK Screws | 6 |
| Pack Dimensions L x W x H mm | 168 x 124 x 34 |
| Pack Weight kg | 0.7 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 560 |
| Offers | Clearance |
| Product Code | 675220 |
| SKU Barcode | 5056110837710 |
| Screw Size imp | 8 x 1 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Satin Stainless Steel |
| Approval | BS 3621:2007 |
Attribute Group 1
| Brand | TIMCO |

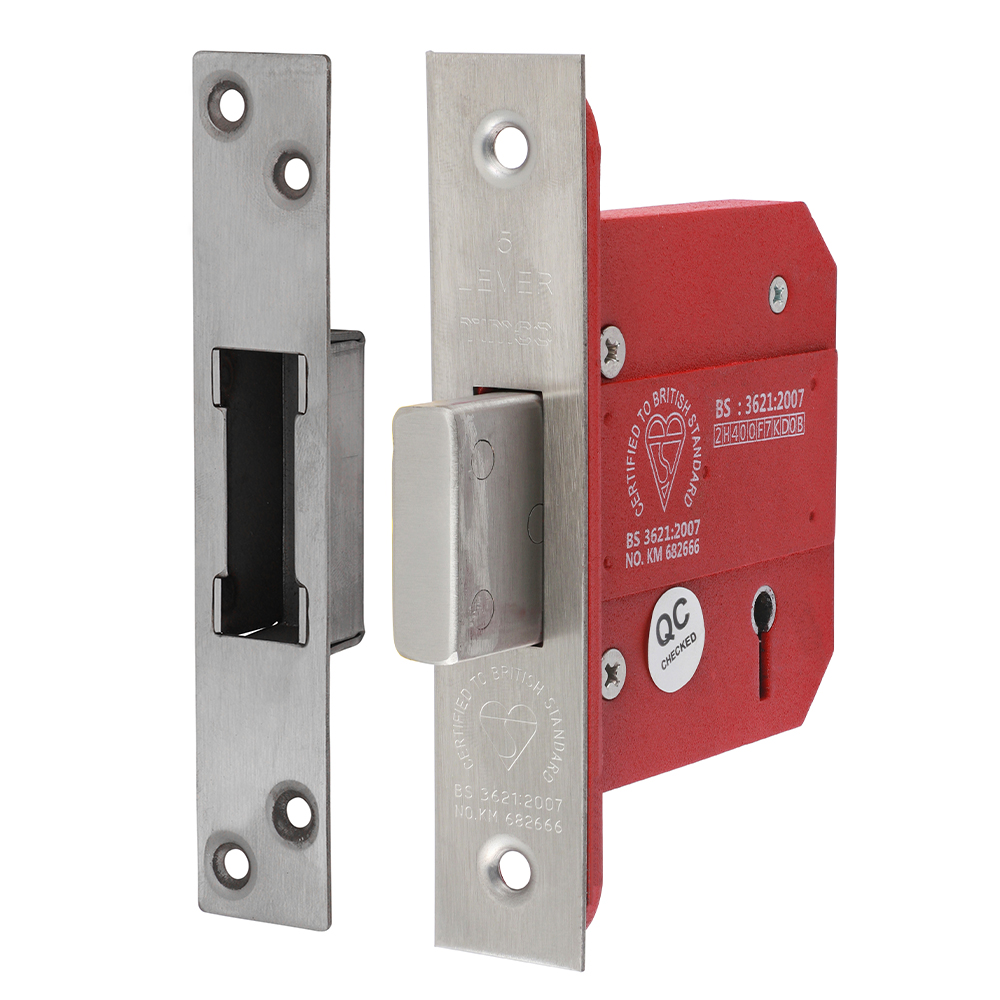

5 Lever British Standard Deadlock - Stainless Steel - Satin
78 case / 57 backset
- Product Code: 675220
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110837710
