Product Information
A high security mortice lock for use in interior and exterior doors in commercial and domestic environments. The lock has been rigorously tested to BS 3621:2007 which is a common requirement of building and contents insurance policies. The heavy duty spring mechanism makes this lock ideal for sprung and unsprung door handles.
- Tested to BS 3621:2007
- Anti-drill protection
- High security, insurance approved
- Easily reversible latch bolt
- Tested & certified for 30 & 60 minute fire doors
- Supplied with 2 keys
- Complete with fixing screws
Documents
Technical Specifications
Product Specification
| Backset mm | 57 |
| Bolt Throw mm | 20 |
| Centres mm | 57 |
| Faceplate Size H x W mm | 155 x 25 |
| Keep Size H x W mm | 172 x 30 |
| Lock Case Depth mm | 78 |
| Lock Case Height mm | 110 |
| Lock Case Size H x D mm | 110 x 78 |
| Lock Case Width mm | 18 |
| Lock Follower Backset mm | 57 |
| Screw Size mm | 4.0 x 25 |
| Size mm | 78 / 57 |
| Faceplate Type | Square |
| Key Qty | 2 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 182 x 122 x 32 |
| Pack Weight kg | 0.864 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 500 |
| BS EN Classification | 3M810G7KD1B |
| CE Standard Web | BS EN 12209:2003 |
| Certifire Number | CF5531 |
| Fire Rating | 30 & 60 Minutes |
| Product Code | 675952 |
| SKU Barcode | 5056110888910 |
| Screw Size imp | 8 x 1 |
Product Specifications
| Finish | Satin Stainless Steel |
| Material | Stainless Steel |
| Included Items | Key (Qty 2), Euro Profile Keyhole Escutcheon (Qty 2), Escutcheon Keyhole Cover (Qty 1) |
| Approval | BS 3621:2007 |
Attribute Group 1
| Brand | TIMCO |

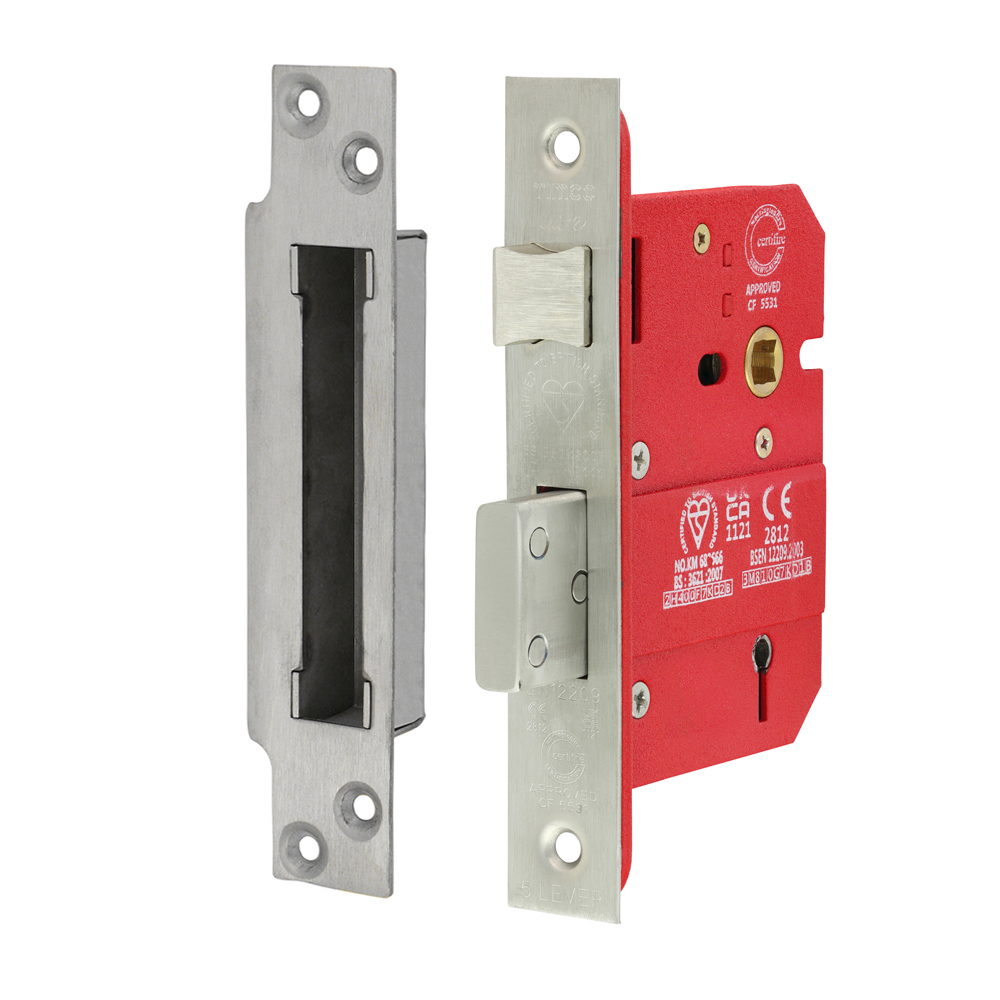

5 Lever British Standard CE Sashlock - Stainless Steel - Satin
78 case / 57 backset
- Product Code: 675952
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5056110888910
