Product Information
3 lever sashlock with a 50mm depth ideal for narrow style glazed doors
- Narrow backset
- Ideal for glazed doors
Documents
Technical Specifications
Product Specification
| Backset mm | 31 |
| Bolt Throw mm | 13 |
| Centres mm | 57 |
| Faceplate Size H x W mm | 152 x 22 |
| Keep Size H x W mm | 125 x 24 |
| Lock Case Depth mm | 51 |
| Lock Case Height mm | 102 |
| Lock Case Size H x D mm | 102 x 51 |
| Lock Follower Backset mm | 31 |
| Size inch | 2 |
| Size mm | 51 / 31 |
| Key Qty | 2 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 4 |
| No of CSK Screws | 4 |
| Pack Dimensions L x W x H mm | 183 x 96 x 44 |
| Pack Weight kg | 0.32 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 675546 |
| SKU Barcode | 5056110884257 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Satin Nickel |
| Material | Steel |
| Included Items | Keys (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

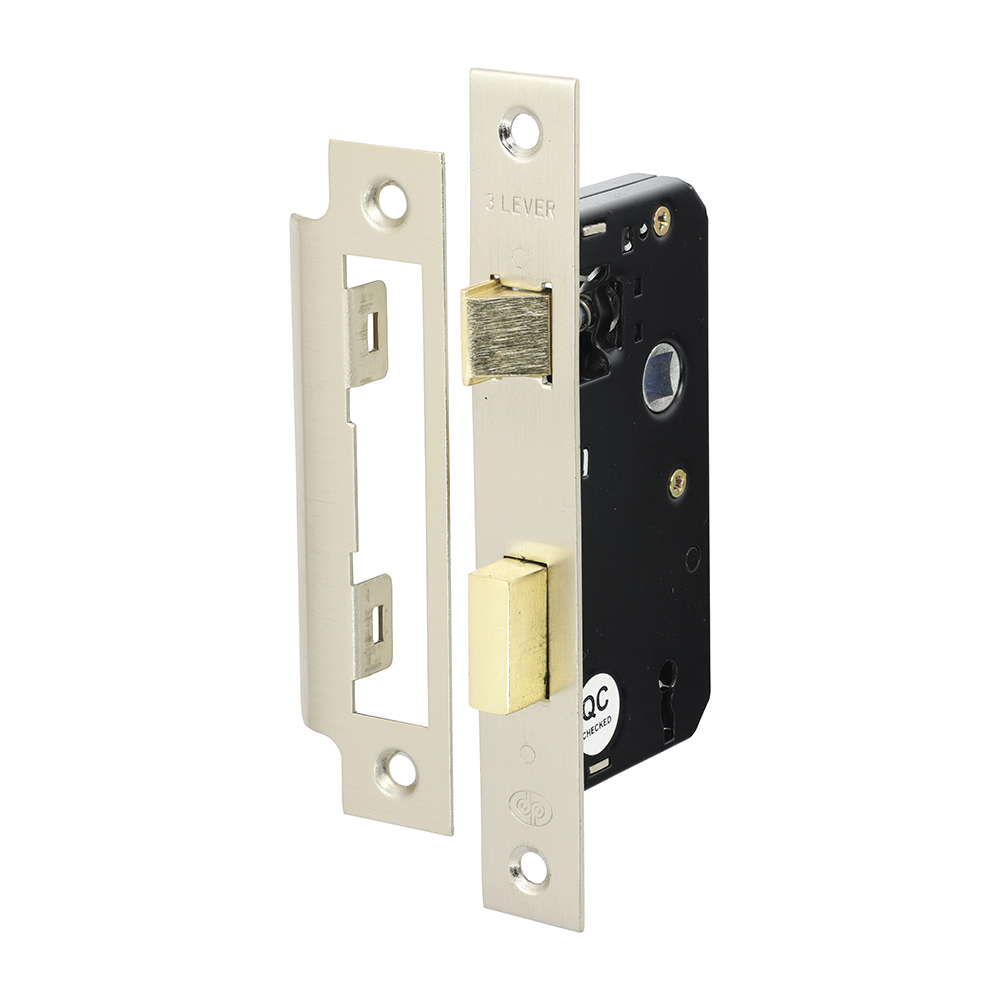

3 Lever Sashlock - Satin Nickel
51 case / 31 backset
- Product Code: 675546
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110884257
